graph TD
    %% Nodes
    ISP[ISP Fiber]
    UDM[UDM-Pro Gateway]
    AGG[USW-Aggregation]
    ENT[USW-Enterprise-24-PoE]
    UNVR[UniFi NVR]
    SERVER[i9-10920X Server]
    NUC[Intel NUC 10]
    PI[Raspberry Pi 5 Witness]

    %% Links
    ISP -->|WAN| UDM
    UDM -->|10G DAC| AGG
    AGG -->|10G DAC| ENT
    AGG -->|10G DAC| UNVR
    AGG -->|10G RJ45| SERVER

    ENT -->|2.5GbE| NUC
    ENT -->|1GbE PoE| PI

    %% Staircase Link
    AGG -->|10G Fiber/RJ45| STAIR[Staircase Flex 2.5G]
    STAIR -->|2.5GbE| U7[U7 Pro AP]

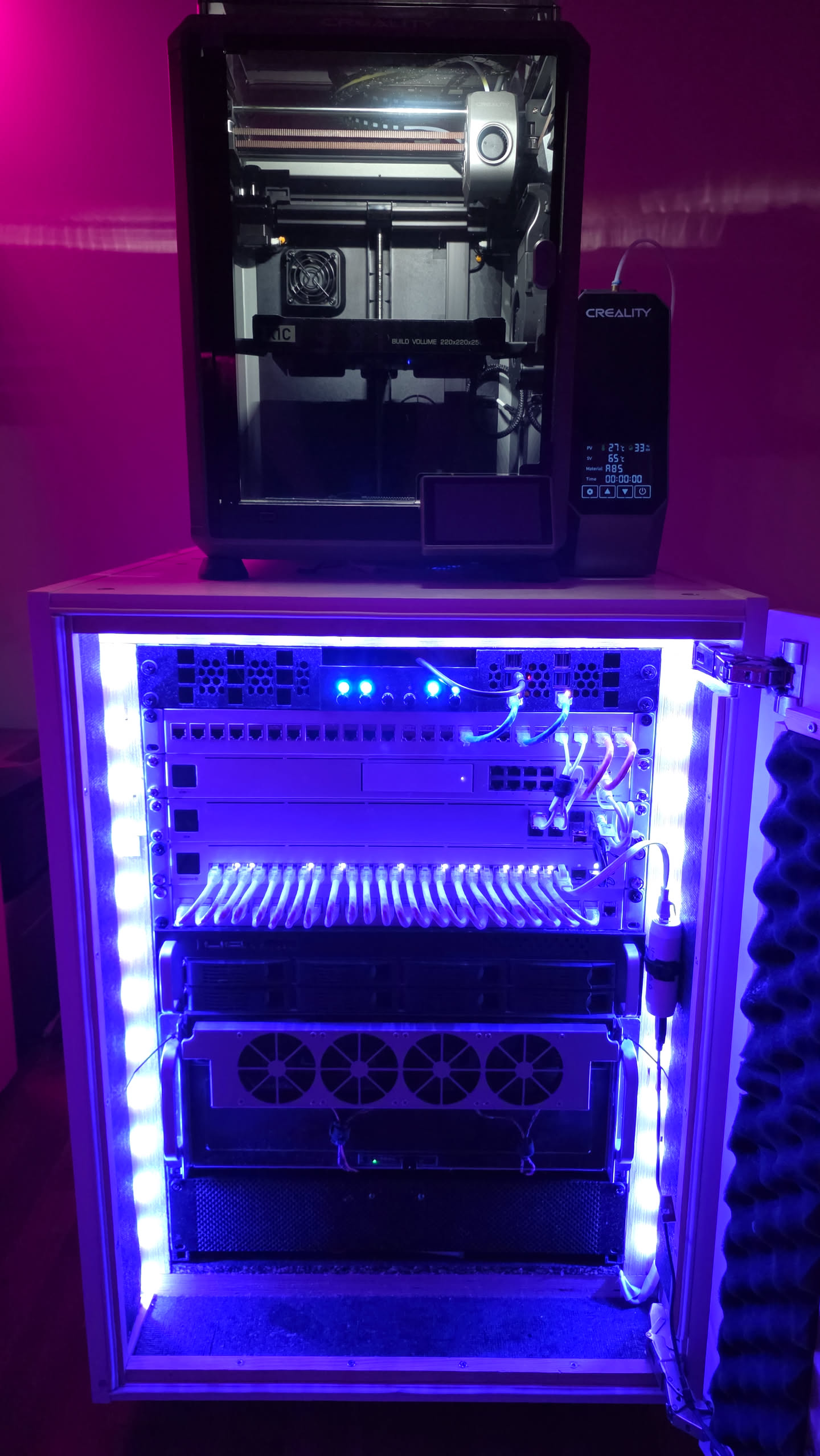

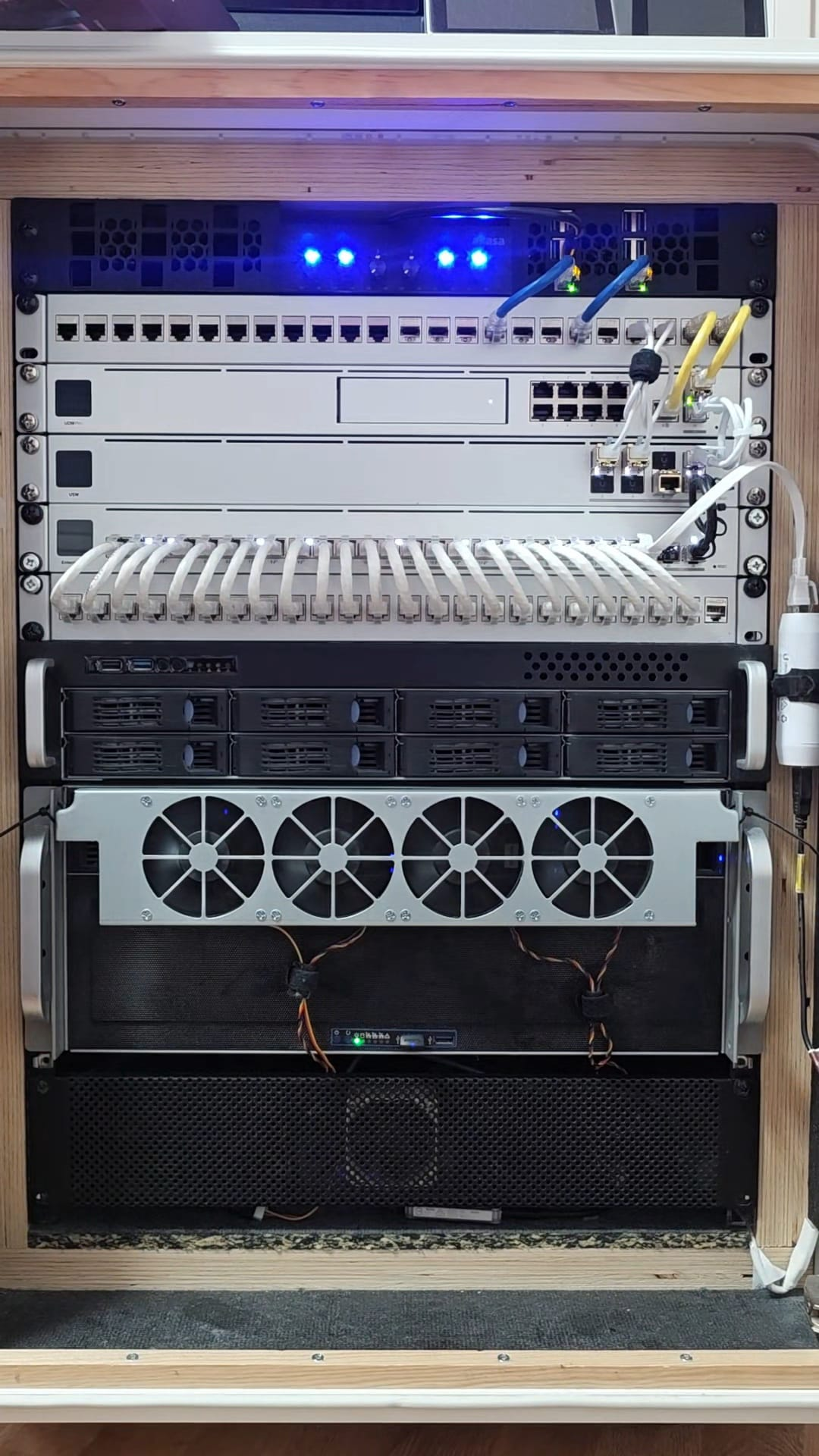

🏢 Office Rack Equipment

Here is everything physically located in the main rack.

UDM-Pro

• Type: Gateway
• Model: UniFi Dream Machine Pro

---

USW-Aggregation

• Type: Switch
• Model: USW-Aggregation

---

USW-Enterprise-24-PoE

• Type: Switch
• Model: USW-Enterprise-24-PoE

---

Proxmox-Node-01

• Type: Server
• Model: Custom i9-10920X

---

Proxmox-Node-02

• Type: Server
• Model: Intel NUC 10 (i7)

---

Cluster-Witness

• Type: Server
• Model: Raspberry Pi 5

---

UNVR

• Type: NVR
• Model: UniFi UNVR

---

AI-Port

• Type: AI Accelerator
• Model: UP-AI-Port

---
